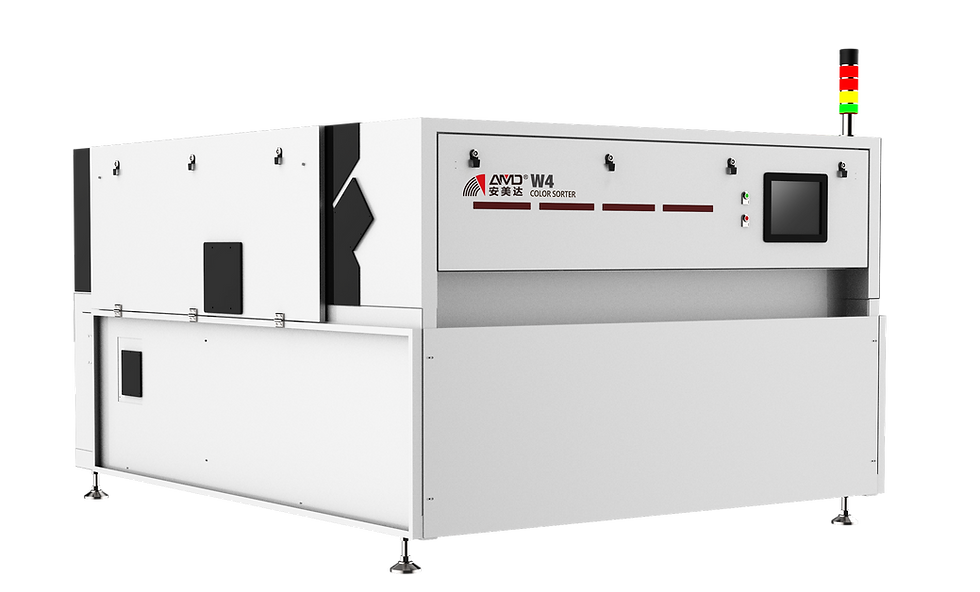

W Series-Tungsten Optical Sorter

  • Industry first to use fluorescence to sort 2mm-30mm tungsten-bearing minerals.
  • The fifth generation FPGA chip make computing more efficient
  • The dissipative fluorescent light path is equipped with AI algorithm for the Tungsten Optical Sorter, which can be more subtly detected.
  • A new high-frequency solenoid valve makes clearing more accurate.
  • Internet and mobile App, more convenient control.
  • Tech Specs

    MODEL W4
    Structure Type Belt Type
    Execution Unit 256
    Capacity (t/hr)

    1.2-6

    Carryover Ratio (Bad:Good) >5:1
    Particle Size 2mm-30mm
    Voltage/Frequency (V/Hz) 220/50
    Power (kW) 2.8
    Air Pressure (Mpa) 0.2~0.6
    Air Consumption (M3/Min) <2.4
    Weight (Kg) 1250
    Dimensions (mm L*W*H) 2651*2145*1785

    Note: Parameters listed are for reference only and may vary depending on the application and feed conditions.







*Images are for representational purposes only
