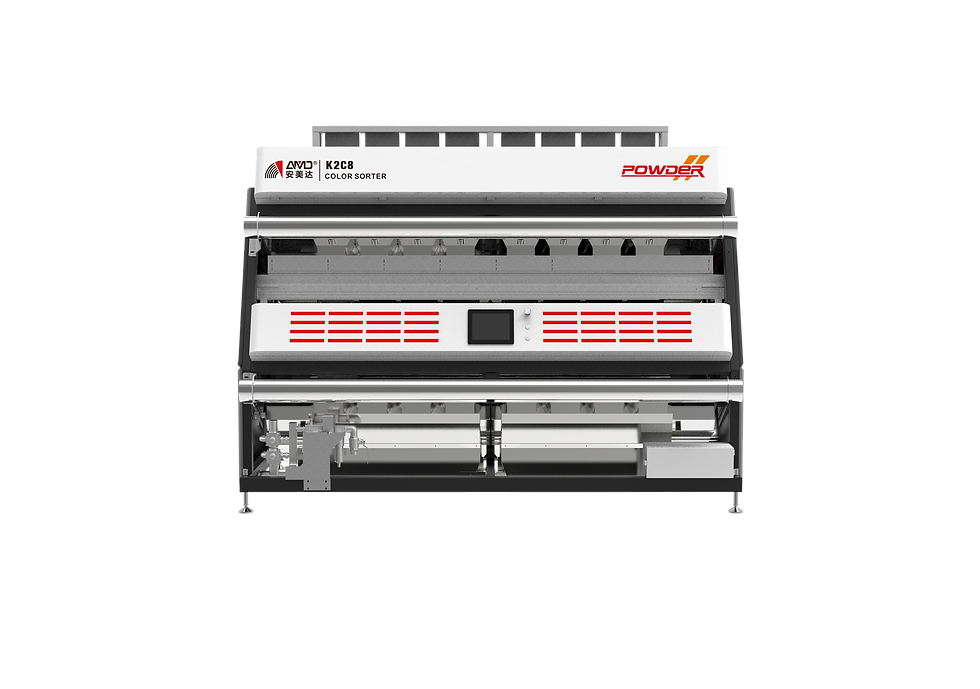

K2C Series-Ore Powder Separator
- Widely applicable for fine ore of varying sizes from 16 to 120 mesh.
- Double layer for re-sorting, low take-out ratio, high sorting accuracy.
- Made from high density alloyed material, chute is resistant to wear and scratching.
- Low consumption, ultra-high frequency solenoid valve, greatly reducing the. loss ratio, with anti-dust, fog environment on the Ore Powder Separator.
- Suspended cleaning equipment can also achieve high sorting accuracy in dusty environments.
- The highest configuration in the industry, with four-lens single chute design, and 128 ejector valves per chute.
Tech Specs
MODEL K2C6 K2C6 Pro K2C6+ Structure Type Verticle Verticle Verticle Layers Double Double Double Capacity (t/hr) 16-26mesh | 5-7
26-40mesh | 3.5-5.5
40-70 mesh | 2.5-4.5
70-120mesh| 1.5-2.5
16-26mesh | 5.5-7.5
26-40mesh | 4-6
40-70 mesh | 3-5
70-120mesh| 2-3
16-26mesh | 6-8
26-40mesh | 4.5-6.5
40-70 mesh | 3.5-5.5
70-120mesh| 2.5-3.5
Carryover Ratio (Bad:Good >1:20 >1:15 >1:15 Accuracy (%) >99 >99 >99 Voltage/Frequency (V/Hz) 380/50 380/50 380/50 Power (kW) 6.6 6.6 6.6 Air Pressure (Mpa) 0.6~0.8 0.6~0.8 0.6~0.8 Air Consumption (M3/Min) >3.6 >3.6 >3.6 Weight (Kg) 2350 2350 2350 Dimensions (mm L*W*H) 2814*2029*2609 2814*2029*2609 2814*2029*2609 Note: Parameters listed are for reference only and may vary depending on the application and feed conditions.
