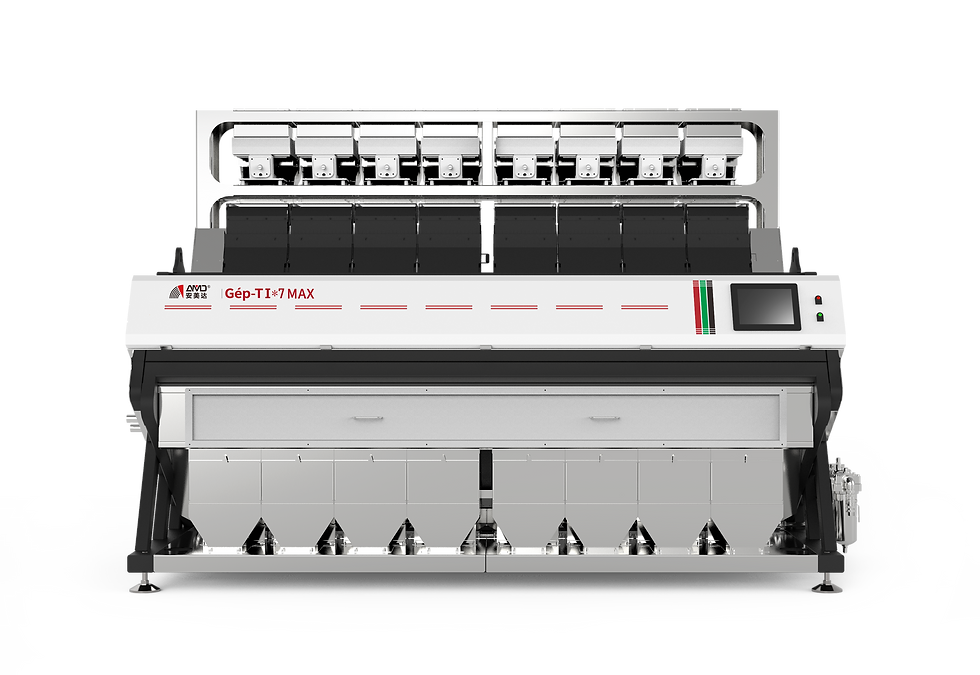

GI MAX and GI*MAX Polymer Material Sorter
- This sorting series is for mixed plastic steams separation i.e. separation of HDPE and PP flakes.
- Separation of transparent and white HDPE flakes.
- Purification of PP flakes, removing non-PP materials.
- Purification of PE flakes, removing non-PE materials.
- Purification of PMMA flakes, removing non-PMMA materials.
- Purification of PC/PC alloy flakes, removing non-PC/PC alloy materials.
- Purification of single-material products sinking and floating in brine (salt) solution at various concentrations, such as PET-G, PC/alloy, PMMA, PVC, POM, ABS/PS/PA, etc. All this with the GI MAX and GI*MAX Polymer Material Sorter
Tech Spec
Model I3MAX/I*3MAX I4 MAX/I*4MAX I5MAX/I*5MAX I6MAX/I*6MAX I7MAX/I*7MAX I8MAX/I*8MAX Accuracy (%) >99 >99 >99 >99 >99 >99 Capacity (t/hr) 0.6-2.3 0.8-3 0.8-3.3 1-4 1.8-5.3 2-6 Air Consump (m/min) <1.5 <2 <2.5 <3 <3.5 <4 Power (kW) 4.2 4.2 6.2 6.2 8.2 8.2 Voltage/Freq 220/50 220/50 220/50 220/50 220/50 220/50 Air Pressure (Mpa) 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 Weight (Kg) 1150/1200 1250/1300 1750/1800 1850/1900 2200/2250 2300/2350 Dimensions (mm)(L*W*H) 2150*1928*2385 2150*1928*2385 2825*1928*2385 2825*1928*2385 3518*1928*2385 3518*1928*2385 Note: Parameters listed are for reference only and may vary depending on the application and feed conditions.
